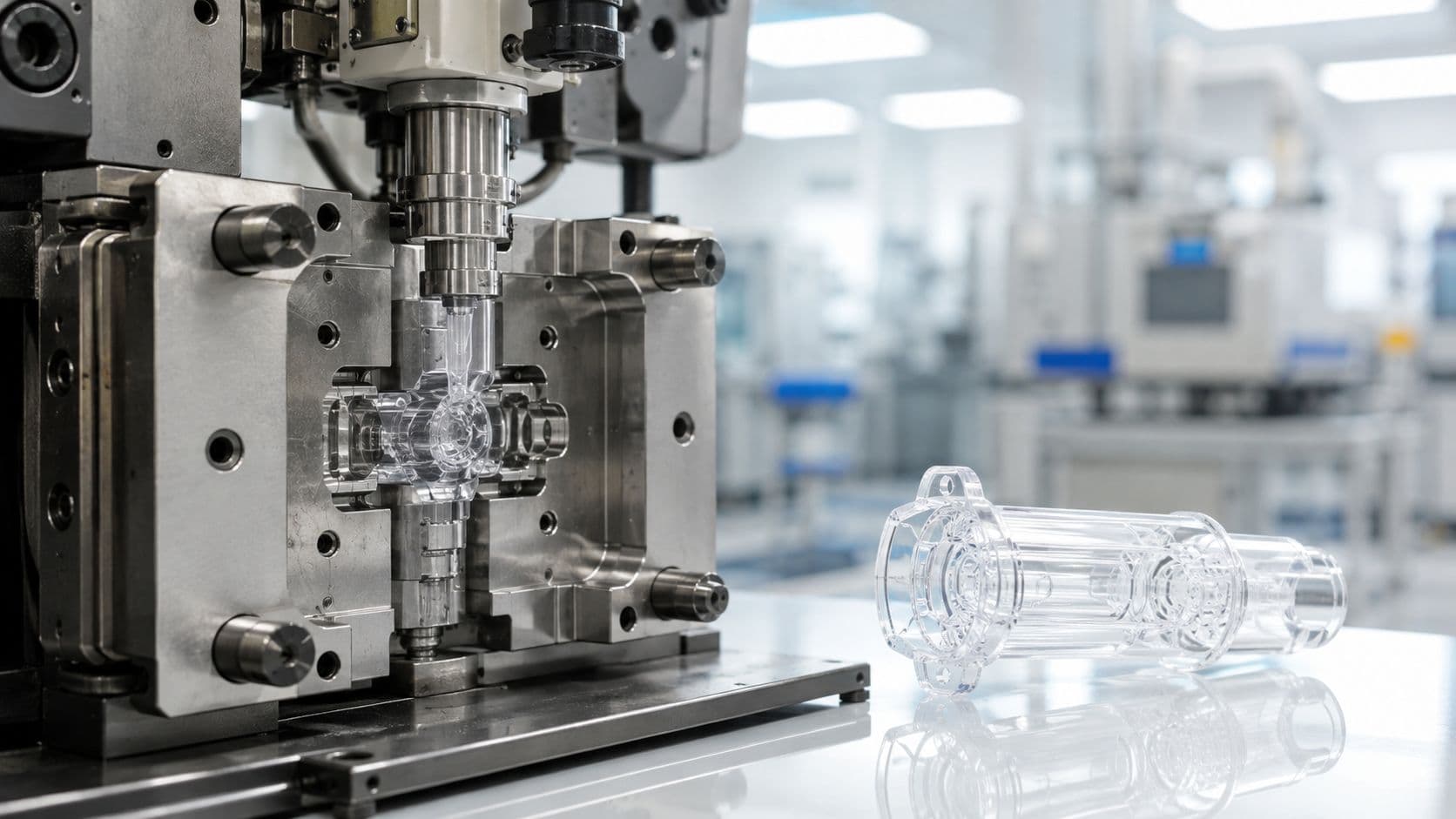

Injection Molding for Medical Devices: An Engineer's
You're three months into an NPI program, the first clinical samples are due soon, and the design still has one part that keeps drifting. The prototype looks fine on the bench, but every supplier quote comes with a different interpretation of tolerance, sterilization, or cleanroom needs. That's the starting point for injection molding for medical devices, because the process doesn't fail in the press first, it fails in the stack of decisions upstream.
For medical programs, injection molding is less a single manufacturing step than a chain of constraints. Material choice, tooling strategy, regulatory evidence, sterilization method, and inspection plan all lock together, and each one affects cost, schedule, and risk. The market is already deep into real production scale, not exploratory novelty, with the global medical injection molding market estimated at USD 25.11 billion in 2025 and projected to reach USD 39.74 billion by 2033, a 5.9% CAGR from 2026 to 2033, while another estimate placed the segment at USD 24.3 billion in 2024 and forecast USD 35.2 billion by 2033 (Grand View Research).
Table of Contents
- Why Medical Device Teams Turn to Injection Molding
The core decision stack
Where the economics start to make sense
How the Medical Injection Molding Process Works- What changes in a medical program
The Regulatory and Quality Layer You Cannot Skip- What the quality system has to prove
Choosing Resins That Will Survive Real Devices- Compare the resin against the device, not the spec sheet
Tooling Strategies from Prototype to Production- Match the tool to the stage
Design for Manufacturing in Tight Tolerance Medical Parts- Geometry drives cost more than people expect
Prototyping Alternatives and Bridge Build Trade-offs- Pick the method based on the test, not the calendar
Selecting and Qualifying a Medical Molding Partner- The credentials that actually matter
Why Medical Device Teams Turn to Injection Molding
A lot of teams hit the same point. The printed prototype proves the geometry, the clinician likes the form factor, and then the program needs parts that can be repeated without hand fitting, surprise shrinkage, or a new tolerance story every time the vendor changes machines. At that point, molding stops being a nice option and starts looking like the only route that can support clinical builds and later commercial supply.
The core decision stack
The question is whether the rest of the program can absorb the tooling and validation burden. A team has to weigh clinical trial quantity, regulatory class, sterilization pathway, and target cost of goods together. If one of those shifts late, the part may still be moldable, but the mold, resin, or process window may no longer fit the program.
Practical rule: freeze the molding strategy before design freeze, not after. If you wait until the submission package is nearly done, mold lead time and process validation can become the schedule bottleneck.
That is why molding usually becomes the default once the part has to move beyond one-off builds into repeatable supply. The process is built for consistent geometry, lot traceability, and stable output, which is what medical programs need when they move from engineering intent to regulated production. ISO 13485, first published in 1996 and later updated in 2003, 2012, and 2016, matters here because it formalizes how molded medical parts are designed, documented, and controlled across global supply chains (Datahorizzon Research).
Where the economics start to make sense
3D printing and casting still have value, but they do not solve the same problem. Printing is good for speed and design iteration, and casting works for low-volume appearance parts, yet neither gives you the same repeatability, lot control, and material consistency that validated molding can deliver. Once a program needs the same connector, housing, or diagnostic consumable to come off the line with the same dimensions every time, injection molding usually wins on system fit, not just on piece price.
The market numbers back up that reality. One report estimated the medical injection molding machine market at USD 1.9687 billion in 2024, rising to USD 3.1005 billion by 2033, with a 5.27% CAGR (Datahorizzon Research). That level of machine investment points to an industry that is spending on cleaner, more controlled, more automated production.
The harder part is choosing which constraints to solve first, because every choice narrows the next one.
How the Medical Injection Molding Process Works
A medical mold can't be run like a commodity part in a cleaner room. The cycle still follows clamping, injection, holding, cooling, and ejection, but the tolerance stack is tighter because the part may contact a body, carry fluid, or need to survive sterilization without losing function. In practice, a luer housing that looks simple on paper can turn into a stability problem as soon as process setup starts.
What changes in a medical program
The machine is only part of the story. The primary difference is the control stack around it. Medical jobs usually need tighter material handling, cleaner staging, and closer monitoring of residence time so the polymer does not sit hot longer than needed. That matters because the resin has to stay aligned with the device's biocompatibility evidence and the later sterilization step, not just look acceptable at the press.
A polycarbonate luer housing is a good example. The part may seem straightforward, but gate location, pack profile, and cooling balance all affect roundness, flash, and seal integrity. A diagnostic PP cartridge has a different set of constraints, because fluidic consistency and warpage control matter as much as appearance. Once those requirements stack up, the process window gets narrow fast.
Why the equipment and sensors matter
Medical molding often benefits from dedicated machines and controlled material flow, especially for sterile or patient-contact parts. Low-shear screw design helps reduce unnecessary polymer stress, and cavity pressure sensing shows what the mold is doing, not just what the machine screen reports. That matters because a part can pass first inspection and still drift out of window as pressure, fill balance, or cooling shifts.
What works in practice: close the loop on the mold, not just the machine. If your data only lives in barrel settings, you're missing the cavity behavior that decides whether the part passes validation.
For vendor evaluation, ask how they monitor pack, hold, and cooling, what they do when residence time drifts, and whether they can show how process data ties back to part acceptance. A clean cycle chart is useful. A stable validated process is what keeps a medical build moving.
The Regulatory and Quality Layer You Cannot Skip
A molded medical part can look perfect and still fail the program if the evidence chain is weak. ISO 13485, biocompatibility documentation, sterilization compatibility, and traceability shape the work from resin selection through validation and production. If a supplier treats them as paperwork after tooling, the project usually pays for it later in scrap, rework, or delayed release.
What the quality system has to prove
A medical molder's quality system has to show document control, design history file support, change control, and supplier qualification. The shop needs to know what changed, when it changed, who approved it, and whether the change affected the molded part or the sterilized device. ISO 13485 is the base expectation here, and a practical overview of that standard is available in this ISO 13485 medical devices guide.
Biocompatibility is another area where teams cut corners too often. Guidance in the brief specifically notes that programs should verify ISO 10993 documentation rather than relying only on USP Class VI, and that sterilization compatibility must be validated for the intended method, such as gamma, ethylene oxide, or steam autoclave (Longteam TW). That matters because a resin can pass an early material screen and still fail after sterilization through embrittlement, discoloration, or mechanical loss.
The trade-off shows up early. A material that molds easily may still create risk if its documentation is thin or if the sterilization route is still undecided. In NPI, that usually means more testing later, more engineering time, and a harder path through validation.
Regulatory requirements and their manufacturing impact
| Requirement | Standard | Manufacturing Impact |
|---|---|---|
| Quality management system | ISO 13485 | Requires documented controls for design, change, and supplier management |
| Biocompatibility evidence | ISO 10993 | Forces resin selection and documentation to match patient-contact risk |
| Sterilization compatibility | Gamma, EtO, steam autoclave | Locks the material and validation plan to the intended sterilization route |
| Lot traceability | Medical quality documentation | Starts at resin receipt and follows the part through processing and packaging |
| Process validation | IQ, OQ, PQ | Requires proof that the mold and process can hold the intended window |
Why traceability has to start early
Lot traceability doesn't begin at final packaging. It starts at the resin dryer and follows the material through the press. If a supplier can't tell you which lot was loaded, which batch was approved, and which certificates were tied to that run, control is already slipping before the part reaches inspection. That is a real problem in cleanroom and patient-contact programs, because the quality layer has to make the molded part defensible later.
Clean documentation also affects lead time. When records are organized, changes can be reviewed without stopping the entire program. When records are incomplete, every deviation becomes a search project, and the schedule absorbs it.
If a device is regulated enough to need validation, IQ/OQ/PQ is required evidence, not theater. It shows the selected material, mold, and process work together under real conditions, not just on a good afternoon in development.
Choosing Resins That Will Survive Real Devices
Material selection in medical molding gets overloaded with wishful thinking. Teams like to start from a datasheet because it's fast, but the actual filter is harsher. The resin has to survive sterilization, chemical exposure, and mechanical loading in the actual device, not just in a coupon test. That's where many first-pass selections fall apart.
Compare the resin against the device, not the spec sheet
The most common medical choices are polypropylene, polycarbonate, ABS, nylon, PEEK, and LSR, usually in medical-grade versions with the right documentation package. The choice should come down to the three filters that matter most in NPI: sterilization route, chemical exposure, and load case. A PC/ABS blend might look attractive early because it molds easily and looks good, but it can be the wrong answer if repeated gamma exposure or harsh reprocessing is in the device's future.
| Resin | Sterilization Compatibility | Mechanical Strength | Typical Medical Use Cases |
|---|---|---|---|
| Polypropylene | Often used where the sterilization route fits the application | Good for many lightweight housings and fluid-contact parts | Diagnostic cartridges, disposables, caps |
| Polycarbonate | Often used when clarity and stiffness matter, depending on validation | Strong and rigid, with good impact resistance | Luer housings, covers, instrument shells |
| ABS | Useful for housings when the environment is controlled | Moderate strength for non-implant, non-fluidic parts | Device enclosures, cosmetic shells |
| Nylon | Chosen when wear and toughness matter, depending on moisture exposure | Tough, but process and environment sensitive | Clips, gears, internal supports |
| PEEK | Used when higher mechanical demand justifies the cost | High strength and thermal capability | Load-bearing, implant-adjacent parts |
| LSR | Good fit for seals and soft-touch interfaces | Flexible, compliant, and resilient | Seals, diaphragms, soft interfaces |
What usually works in development
LSR earns its place on soft-touch seals because it gives design teams a route to compliance and sealing without fighting rigid plastic stress. PEEK earns its price tag in the harder parts of the spectrum, where mechanical demand is high and the device sits closer to a load-bearing or implant-adjacent use case. Between those extremes, polycarbonate and polypropylene often carry a lot of the program because they balance moldability, function, and qualification burden.
The key is to pick the cheapest qualified resin that survives all three filters. Don't pay for a premium polymer unless the part needs it, and don't downgrade the resin just because the first prototype behaved well on the bench. The failure may not show up until sterilization or late-life fatigue testing.
For a broader material reference, the resin decision is also discussed in this thermoplastics injection molding guide.
Working rule: if a downstream test fails, change the resin last. First check geometry, gate location, pack, and sterilization assumptions, because the material may be fine and the system around it may not be.
Tooling Strategies from Prototype to Production
Tooling is where medical NPI programs either gain momentum or lose half a quarter. The wrong mold choice can trap the team in expensive rework, but the wrong assumption about tool life or surface finish is just as bad, because steel conversion often exposes every shortcut that was acceptable in the prototype phase. I've seen teams treat tooling like a procurement event. In medical programs, it's more like a design decision with financial consequences.
Match the tool to the stage
CNC-machined rapid tooling works when you need fast proof of form and function, not production intent. It's useful for a few dozen to a few hundred parts, especially when design changes are still likely. For many teams, that's the right answer for early clinical fit checks, as long as nobody pretends the tool is production-ready.
Aluminum bridge or pilot molds sit in the middle. They're the practical choice when the geometry has stabilized enough to start real validation builds, but the program can't justify steel yet. This is also where teams learn whether draft, texture, or gate position will survive a steel conversion later. If they won't, the bridge tool is the cheap place to find out.
The boundary between bridge and production
Production steel is the right call when the device is ready for long runs, tight repeatability, and stable supply. Multi-cavity tools make sense when volume and unit economics need to work over time, but the front-end cost and lead time are higher, and the mold design has to be more disciplined. A hybrid approach, using a production cavity with rapid inserts, can help a team preserve speed in development without throwing away the production architecture.
For teams comparing rapid options, this rapid tooling services overview is a useful reference point. FIRMFG is one example of a supplier that combines rapid tooling with CNC, molding, and low-volume support, which can help when a medical team wants one workflow across prototype and pilot stages.
What usually breaks the plan
The hidden cost is underestimating draft and texture for steel conversion. A feature that releases fine from aluminum can hang up in steel, and a cosmetic finish that looked acceptable in rapid tooling can become a shutoff or ejection problem later. Family tooling can help when parts share geometry, but only if the common features tolerate the same shrink, gate behavior, and finish.
Budget rule: spend on the tool when the part geometry is stable, not when the schedule is nervous. If you pay for steel before the design settles, you're financing rework with metal.
Design for Manufacturing in Tight Tolerance Medical Parts
Injection molding fails in the stack of upstream decisions before it ever reaches the press. In tight tolerance medical parts, the work is deciding where precision matters, where it does not, and how much tooling risk the team is willing to carry to get there.
Geometry drives cost more than people expect
Design reviews often push for ±0.05 mm on most dimensions, with ±0.01 mm only where the function justifies it. That is the right discipline. Hold the sealing land, the luer interface, or the snap-fit that controls assembly to the tighter band, then give cosmetic or noncritical faces more room so the tool can run without constant correction. If every surface is critical, the drawing is asking the mold to solve a problem the product does not need.
Wall thickness needs the same discipline. Most resins want around 0.8 to 1.0 mm, while LSR can go down to 0.5 mm according to the guidance in the brief. Draft angles of 1° for steel and 2° for aluminum tooling are useful baselines, because too little draft creates drag, scuffing, and ejection damage. The part may still fill, but scrap and wear will show up in the first debug loop.
Micro-features need special treatment
Undercuts, thin walls near bosses, and micro-holes for fluidics need explicit decisions, not optimism. Sometimes slide action is the right answer. Sometimes a pickout is cheaper than forcing the cavity to do something awkward. Sometimes the cleanest move is a redesign that puts the feature where the mold can fill and release without fighting it. That choice affects tool cost, validation effort, and lead time, so it should be made early, not after the first short shot.
The same logic applies to radii. Sharp corners raise stress, especially in polymers like PC and PSU, so the drawing needs to show where the part is meant to flex, where it must not crack, and what the radius is doing in use. A dimension without a function just makes the mold harder to build and the part harder to validate.
Tolerance budgeting keeps the part honest
A good tolerance budget treats the assembly like a stack, not a single number. Spread the total stack-up across the critical features, keep generous tolerance on nonfunctional faces, and write the intent into the drawing so the supplier knows what matters clinically. That saves time in debug because the conversation stays on function instead of appearance.
Design takeaway: do not ask the tool to fix geometry that CAD already misallocated. The cheapest tolerance is the one you never force the mold to make up.
Prototyping Alternatives and Bridge Build Trade-offs
Medical teams often want prototype parts that look like production but arrive like a sample. That's a fair request, but every prototyping route carries a compromise that needs to be named up front. A part can be fast, cheap, accurate, or sterilization-representative, but rarely all four at once.
Pick the method based on the test, not the calendar
Vacuum casting works well for appearance models and ergonomic studies, and the lead time is often short enough to keep a concept moving. The problem is that urethane copies from a soft tool don't behave like molded thermoplastics in sterilization or long-term mechanical use. If the plan includes gamma exposure or real-world reprocessing, vacuum casting is usually the wrong proxy.
SLA is useful for clear or rigid concept parts, especially when clinicians need to see geometry or fluid paths. SLS in nylon helps when snap-fit behavior or rough functional fit is the goal. Both are valuable, but neither should be treated like a direct substitute for a molded medical part. The material, surface, and flow behavior all differ enough to skew validation thinking if nobody calls it out.
Method comparison for NPI
| Method | Typical Lead Time | Representative Tolerance | Sterilization Compatible | Best Use Case |
|---|---|---|---|---|
| Vacuum casting | Often 5 to 15 business days | Useful for visual and ergonomic fit checks | No, not for representative sterilization behavior | Appearance models, ergonomic studies |
| SLA | Fast for early prototypes | Good for concept-level fit and clarity | Limited, depends on resin and test purpose | Clear parts, form studies |
| SLS | Useful for functional geometry checks | Suitable for snap-fit and rough-fit evaluation | Limited representativeness for molded parts | Snap-fit verification, rugged prototypes |
| Short-run bridge molding | Often 1 to 3 weeks | Closer to production intent | Yes, when the right resin and validation are used | Design Verification, clinical samples |
Bridge tooling is the cleaner step when the team needs 50 to 500 parts that behave like the final product. It's the right bridge between design and validation because the parts come from a mold, not a substitute process. That's often the point where DFM defects surface instead of being hidden by additive or cast behavior.
The practical split is simple. Use vacuum casting, SLA, or SLS when the question is does the shape work. Use bridge molding when the question is will the device survive real process and regulatory pressure.
Selecting and Qualifying a Medical Molding Partner
A quote is not qualification. A low number on an RFQ can still hide weak traceability, poor inspection discipline, or a tooling shortcut that becomes your problem after the first change order. In medical programs, vendor selection should feel like a structured review, not a price comparison.
The credentials that actually matter
Start with current ISO 13485 certification and verify the scope and expiry, not just the logo on the slide deck. Confirm that the molder can support IQ/OQ/PQ, has FDA registration where applicable, and has experience with the exact resin family and sterilization method your device needs. If their experience is only generic molding, they may still be capable, but they're starting from a weaker position.
Cleanroom capability matters too. The brief's checklist calls out ISO Class 7 or better, and that's the kind of environment you want when the part will touch patients or move into a sterile workflow. Ask how many presses sit under that classification, what the particulate monitoring looks like, and how they maintain resin lot traceability and material certificates for each run.
Questions that surface real capability
A strong RFQ includes specific questions:
- What is your validated revalidation cadence after tool changes?
- How do you document resin lot traceability from receipt to packaging?
- Can you share recent inspection data for similar parts?
- What is your CAPA process when a part drifts out of spec?
- Which sterilization methods have you validated on comparable materials?
Those questions reveal whether the supplier owns process control or just quotes parts. A partner who hesitates on inspection data, has no CAPA system, or prices far below market may be cutting corners in tooling, validation, or labor discipline. That risk isn't theoretical, because the first failure usually shows up after the project has already burned time and budget.
Qualification shortcut: if the vendor can't explain how they protect traceability before the part leaves the dryer, keep looking.
For teams that want a broader manufacturing fallback as well as molding support, FIRMFG can be one option among several because it combines rapid prototyping, low-volume manufacturing, and injection molding support under one workflow. That doesn't remove the need for supplier qualification, but it can simplify the path from DFM feedback to pilot builds when the geometry is still settling.
If your program is at the point where resin choice, tooling, and validation are all colliding, talk to FIRMFG about prototype-to-pilot support for medical components. Their mix of CNC prototyping, rapid tooling, vacuum casting, and injection molding can help you compare process routes before you lock the build plan, and you can start by visiting FIRMFG to see whether their workflow fits your next NPI milestone.
